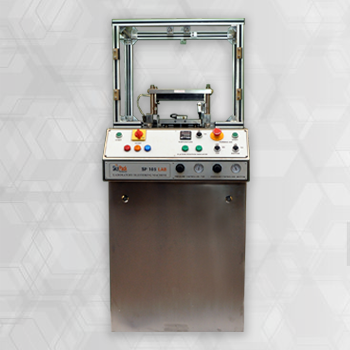

SP 103 - LAB is a Compact, Customizable and Commercially Comparable Blister Packaging Machine designed for laboratories and facilities require for low volume packing solution. The SP 103 - LAB gives you total concern over the production of blister pack use in clinical trials.
| Blister Type | PVC / PVDC-ALU &ALU-ALU |
| Max. Blister Size | 100 mm X 70 mm [PVC / PVDC-ALU] & 150 mm x 90 mm [ALU-ALU] other pack sizes also possible as per requirment within the format size |
| Max. Blister Area | 100 mm X 150 mm |
| Single Station | For Flat Forming, Sealing & Punching |
| Max.Forming Depth | 15mm in Thermoforming and 12mm in Cold Forming |
| Base Material | PVC film / PVC film with PVDC coating / Aclar - 0.25mm - 0.35mm & ALU-ALU Cold Forming material 0.13 mm |
| Lidding Material | Aluminum Foil 0.02mm to 0.03mm thick, hard, heat sealable |
| Standard Electrical Utility | 415V, 3PH, 50Hz |
| Temperature | 0° to 200° C |
| Power Consumption | 5 KW |
| Compressed Air Consumption | 7 CFM @ 6 bar pressure |
| Cooling Water Consumption | 2 Ltrs P /Minute at 12° to 15°C @ 3 Bar Pressure |
| Machine Footprint | 500 mm x 640 mm x 1500 mm ( Height) |
| Net Weight | 300 Kg. |
