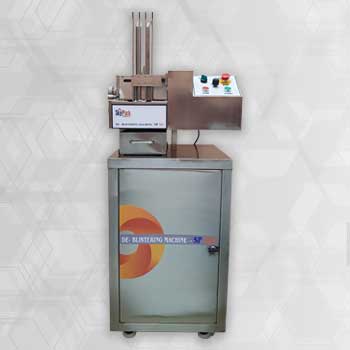

De Blistering Machine SP 303

De Blistering Machine SP 303

De Blistering Machine

Deblistering Machine SP 303 - DeBlist

  • ➣ cGMP Model
  • ➣ User Friendly
  • ➣ Easy Installation
  • ➣ Easy tool - less change over
  • ➣ Easy Mechanical Operations
  • ➣ No Skilled Operator Required
  • ➣ Highly efficient and labour saving

Deblistering Machine SP 303 - DeBlist is a Compact, Customizable & Commercially Comparable De Blistering Machine specially designed & manufactured for the purpose of the recovery of Tablets / Capsules from rejected blisters.


Highlights :

  • ➣ Machine Frame Cladded with SS 304.
  • ➣ Compact model Conforming to GMP Standards.
  • ➣ All Contact Parts are in SS 316.
  • ➣ Capable of Removing Product from Push Thru and Glassine Foil.
  • ➣ SS 316L with Food Grade Silicon Rubber Roller for Effective Product Removal.
  • ➣ Guide Roller with Universal Rings.
  • ➣ Automated Vertical Feed System with Adjustable Magazine to Pack Loading.
  • ➣ Emergency Stop Switch.
  • ➣ Tool Less Easy and Quick Change Over System.
  • ➣ Cabinet for Keeping Tooling's.
  • ➣ Wheel for Easy Movement.

Technical Specification :

Construction All contact parts - SS 316, All Aluminum parts - Anodized (With Tooling's Storage Cabinet)
Blister Type Push Thru / Glassine Foil
Output 30-35 Blisters P /Minute
Max. Blister Size 150 mm X 100 mm
Power Input Single phase 110/230v-50Hz/60Hz
Power Consumption 0.5kW
Change Over Time 5~10mins
Machine Dimensions 550 mm (W) x 500 mm (B) X 1430 mm (H)
Net Weight Approx 110 Kg
